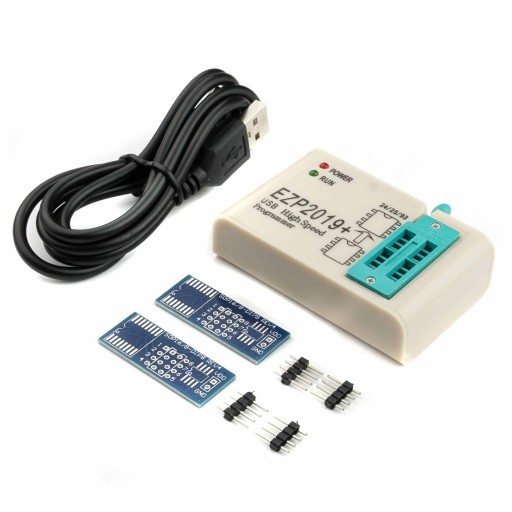

Programator EZP2019+ to nowy następca serii EZP20xx. Cechuje się wsparciem dla większej ilości układów, interfejsem USB 2.0, dużą szybkością zapisu i odczytu do 12Mbps - przykładowo pamięć EN25T80 o pojemności 8-Mbit odczytasz w 3 sekundy i zapiszesz w 9 sekund. Jego zastosowanie to przykładowo naprawy urządzeń gospodarstwa domowego, nadaje się do flashowania telewizorów, odtwarzaczy DVD, płyt głównych komputerów i chipów pamięci masowej na dyskach twardych oraz innych podobnych. W zestawie 2 adaptery SO8/SO16.

Programator:

• sam rozpoznaje rodzaj wpiętej pamięci
• rozpoznaje czy chip jest poprawnie umieszczony w podstawce
• automatycznie dobiera napięcie zasilania
• posiada funkcje kopiowania pamięci
• wspiera 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM

Wersja EZP2019+ różni się od wersji 2019 tym, że najnowsza wersja z plusem pozwala:

• dodawać własne chipy: 24 EEPROM, 25 EEPROM i SPI FLASH, 93 EEPROM
• dodawać własne chipy serii 25 na napięcie 1.8V (potrzebny adapter)

Specyfikacja:

• zasilanie USB
• szybkość programowania: 12Mbps
• obsługuje układy EEPROM, Flash I2C i SPI
• podstawka do wpinania układów: ZIP16
• możliwość zastosowania dodatkowych adapterów
• działa z systemami: Windows XP, Windows Vista, Win7, WIN8, WIN10
• w zestawie kabel USB
• kompaktowe wymiary: 65mm x 45mm x 18mm

Obsługiwane pamięci:

*** 25 SPI FLASH ***

AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641

EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25F20, EN25F20, EN25F20, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128 ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA

MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D

NexFlash: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B

SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A

SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C

ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, The M25PE80, M25PX80, M25P16, M25PE16 , M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X25, W40, W40X25A, W25X20L, W40 W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64

*** 24 EEPROM ***

ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C24, ATC64, AT24C6464, AT24C16B, AT24C24, AT24C32, AT24C64 AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALYST:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C24 CAT, CAT24C24, CAT24C24, CAT24C128, CAT24C

COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V

FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C256L,

HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128 HT24C256, HT24 256, HT24C128, HT24

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24LC16, 24LC16B, 24LC16B 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC: NSC24C02, NSC24C02L, NSC24C64 RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64 XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

*** 93 EEPROM ***

AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC: ATC93C46, ATC93LC46 (16bit), ATC93LC46 (16bit) -SOP8, ATC93LC46 (8bit), ATC93LC46 (8bit) -SOP8, ATC93C56, ATC93LC56 (16bit), ATC93LC56 (16bit) -SOP8, ATC93LC56 (8bit), ATC93 ) -SOP8, ATC93C66, ATC93LC66 (16bit), ATC93LC66 (16bit) -SOP8, ATC93LC66 (8bit), ATC93LC66 (8bit) - SOP8

ATMEL: AT93C46 (16bit), AT93C46 (16bit) -SOP8, AT93C46 (8bit), AT93C46 (8bit) -SOP8, AT93C46A, AT93C56 (16bit), AT93C56 (16bit) -SOP8, AT93C56 (8bit), AT93C56 (8bit)- SOP8, AT93C57 (16bit), AT93C57 (16bit) -SOP8, AT93C57 (8bit), AT93C57 (8bit) -SOP8, AT93C66 (16bit), AT93C66 (16bit) -SOP8, AT93C66 (8bit), AT93C66 (8bit) -SOP8, AT93C86 (16bit), AT93C86 (16bit) - SOP8, AT93C86 (8bit), AT93C86 (8bit) -SOP8

CATALYST: CAT93C46 (16bit), CAT93C46 (8bit), CAT93C46A, CAT93C46I, CAT93C56 (16bit), CAT93C56 (8bit), CAT93C56A, CAT93C57 (16bit), CAT93C57 (16bit) -SOP8, CAT93Cbit (9366) (1666) CAT93C66A, CAT93C86 (16bit), CAT93C86 (8bit)

COMMON: 93C46 (16bit), 93C46 (8bit), 93C56 (16bit), 93C56 (8bit), 93C66 (16bit), 93C66 (8bit), 93C86 (16bit), 93C86 (8bit)

EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD: FM93C06AM8 (16bit), FM93C06AM8 (8bit), FM93C06M8, FM93C06N, FM93C46AM8 (16bit), FM93C46AM8 (8bit), FM93C46AN (16bit), FM93C46AN (8bit), FM93C16 (16bit), FM93CS1616 (16bit) , FM93CS56 (16bit), FM93C66AM8 (16bit), FM93C66AM8 (8bit), FM93C66AN (16bit), FM93C66AN (8bit), FM93C66B, FM93C66M8 (16bit), FM93C66MT8 (16bit), FM93C16AM (93bit), FM93C16N (16bit) 16bit), FM93C86AM8 (8bit), FM93C86AN (16bit), FM93C86AN (8bit)

HOLTEK: HT93LC46A (16bit), HT93LC46A (8bit), HT93LC56A (16bit), HT93LC56A (8bit), HT93LC66A (16bit), HT93LC66A (8bit)

ICT: ICT93C46 (16bit), ICT93C46 (8bit), ICT93C56 (16bit), ICT93C56 (8bit), ICT93C66 (16bit), ICT93C66 (8bit) ISSI: IS93C46 (16bit), IS93C56 (16bit), IS93C66 (16bit)

MICROCHIP: 93C06 (16bit), 93C06 (16bit) -SOP8, 93AA46 (16bit), 93AA46 (8bit), 93AA46 (8bit) - SOP8, 93C46 (16bit), 93C46 (16bit) -SOP8, 93C46A, 93C46B, 93LC46 (16bit), 93LC46 (16bit) -SOP8, 93LC46 (8bit), 93LC46 (8bit) -SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (16bit), 93AA56 (8bit), 93AA56 (8bit) -SOP8, 93C56 (16bit), 93C56 (16bit) -SOP8, 93C56 (8bit), 93C56 (8bit) -SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56 (16bit), 93LC56 (16bit) -SOP8, 93LC56 (8bit), 93LC56 (8bit) ) -SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16bit), 93AA66 (8bit), 93AA66 (8bit) -SOP8, 93C66 (16bit), 93C66 (16bit) -SOP8, 93C66 (8bit), 93C66 (8bit) -SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16bit), 93LC66 (16bit) -SOP8, 93LC66 (8bit), 93LC66 (8bit) -SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76 (16bit ), 93AA76 (8bit), 93C76 (16bit), 93C76 (8bit), 93LC76 (16bit), 93LC76 (8bit), 93LC76A, 93LC76B, 93AA86 (16bit),93AA86 (8bit), 93C86 (16bit), 93C86 (8bit), 93LC86 (16bit), 93LC86 (8bit), 93LC86A, 93LC86B

NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56C, M93S56W, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

*** 25 EEPROM ***

ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

CATALYST: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C128S

COMMON: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON: FM25C160, FM25640, FM25CL64

ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI: TI2532, TI2532A, TI2564

XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
