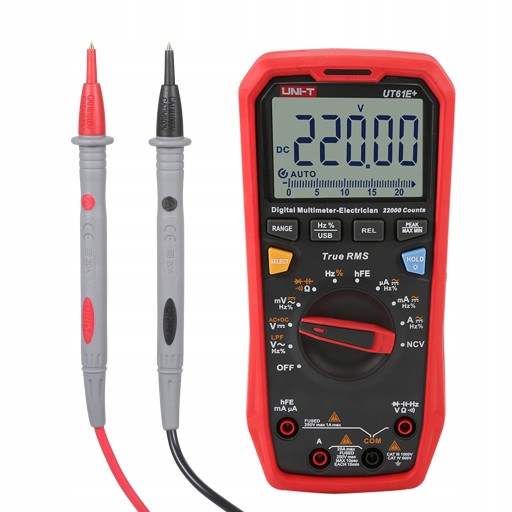

Ручной мультиметр UNI-T UT61E

The UT61E is a true RMS handheld digital multimeter with high reliability and safety (UT61E : 22,000 counts). It has a large screen, high-resolution analog display and full overload protection. The meter can measure AC / DC voltage / current, resistance, diode, hFE transistor (UT61E ), continuity, capacitance, frequency, duty cycle etc. Equipped with functions such as data transmission, data hold, relative value measurement, peak measurement, internal measurements, temperature alarm, low battery indicator, backlight, automatic shutdown and NCV, it is an ideal measuring tool for many application areas.

Characteristics:

UT61E can measure many parameters including DC / AC voltage, DC / AC current, resistance, diodes, capacitance, frequency, duty cycle, and perform NCV detection and continuity test.

Equipped with a large backlit LCD display that shows 22,000 counts of clear readings, easy to read.

Ergonomically designed with a kickstand for comfortable use, and the rubber casing makes it durable for a long time.

Comes with a protective rubber casing for durability, two test lead slots for better storage, and a stand that helps the device stand freely.

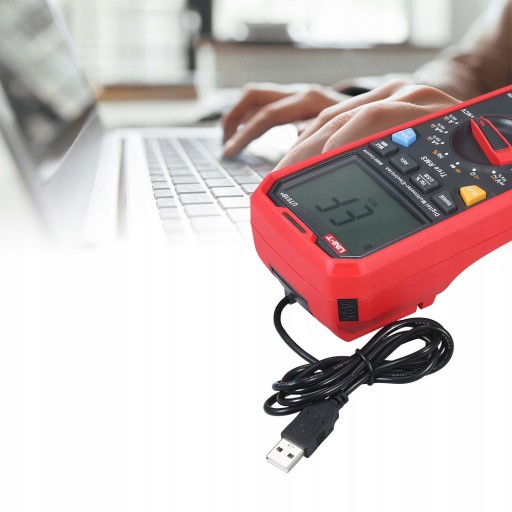

Supports data transmission with the supplied USB cable, more practical and useful.

Provides buzzer alarm and indicator lamp for voltage and current measurement, diode and continuity test, and NCV detection.

The perfect tool for installing household circuits, repairing electronics, maintaining electrical installations, repairing cars, repairing household appliances.

Technical data:

Brand : UNI-T

Model: UT61E

Material: ABS

Power supply 1.5V AAA (R03) x 4 battery (not included)

Packing list:

1 * UT61E Multimeter;

1 * test leads

1*USB cable

1 * adapter socket

1 * User Manual (English)

AC voltage (V) 200mV ~ 1000V; ± (0.8% ＋ 10)

DC voltage (V) 200mV ~ 1000V; ± (0.05% ＋ 5)

AC current (A) 220μA ~ 20A; ± (0.8% ＋ 10)

direct current (A) 220μA ~ 20A; ± (0.5% ＋ 10)

Resistance (Ω) 220Ω ~ 220MΩ; ± (0.5% ＋ 10)

Capacitance (F) 22nF ~ 220mF; ± (3.0% ＋ 5)

Frequency (Hz) 10Hz ~ 220MHz; ± (0.01% ＋ 5)

Duty Cycle (%) 0.1% ~ 99.9%; ± (2.0% ＋ 5)

NCV ＞ 100V

Number of displays 22,000

Auto / Manual Range √

Analog bar 46

Real effective value

Frequency response 40Hz ~ 10KHz

LPF (low pass filter) √

ACV DCV √

Diode test √

√ triode test

On-off measurement (50Ω beep sound, ≥70Ω beep sound)

√ low voltage indicator

Data hold / relative value √

max. /Min. value √

Peak measurement √

USB data transfer √

LCD backlight √

Safety classes CAT III 1000 V / CAT IV 600 V
