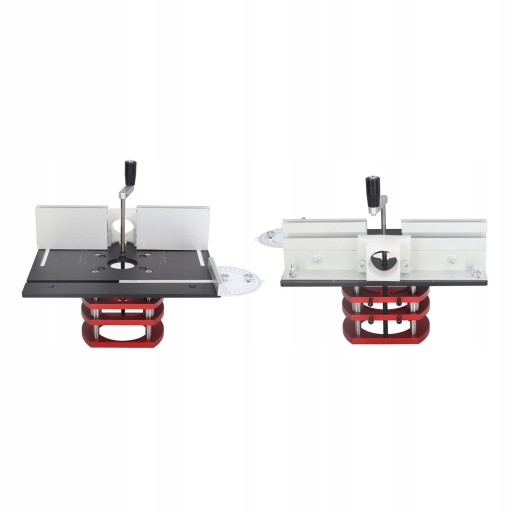

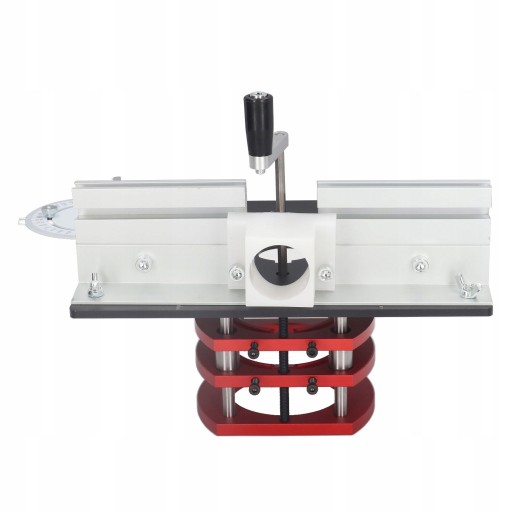

wkv-Milling Podnośnik with top plate Base

Function:

1. APPLICABLE SCENES: This lifting base set is suitable for woodworking machinery, such as engraving, slotting, trimming and chamfering machines.

2. UNIVERSAL TYPE: The lifting base is of universal design, suitable for woodworking machines with motor diameter from 64mm to 66mm.

3. LIFTING RANGE: The maximum lifting stroke is 51mm (2 inches), it can be lifted 1mm per revolution, the manual lifting method is safe and stable.

4. METAL STRUCTURE: The elevator body is made of aluminum alloy, with stainless steel bearing bars, lightweight, rust and corrosion resistant.

5. EASY INSTALLATION: 4 mounting holes design, comes with screws and wrench, just attach the threaded support rod to the plate for use.

Specification:

• Item Type: Router Lift Kit
• Lifting base material: aluminum alloy, stainless steel
• Router plate material: aluminum alloy
• Table top size: approx. 240 x 200mm / 9.4 x 7.9 inches
• Maximum lifting stroke: approx. 51 mm / 2 inch
• Lifting method: manual lifting, equipped with a manual lifting lever
• Mounting Screw Hole Position: Approx. 70 x 62 mm / 2.8 x 2.4 inch
• Applicable machine: universal type, suitable for trimming machines with motor diameter between 64-66mm

Package List:

• 1 x lifting base
• 1 x handle
• 4 screws
• 1 x hex key
• 1 x router board
• 1 x engineering plastic backing
• 1 x Angle Disc
• 2 x insert rings
