SC8108 Измерение длины тестера локальной сети

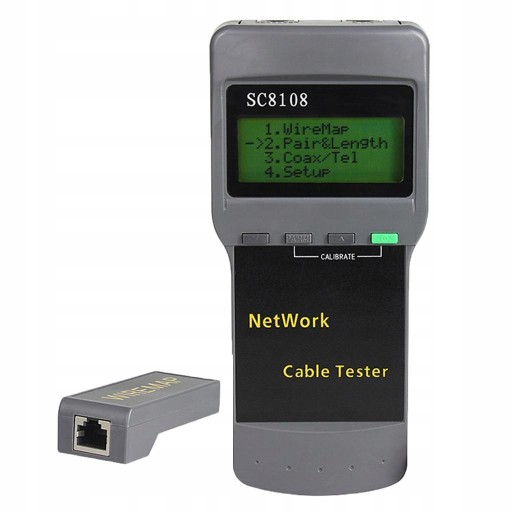

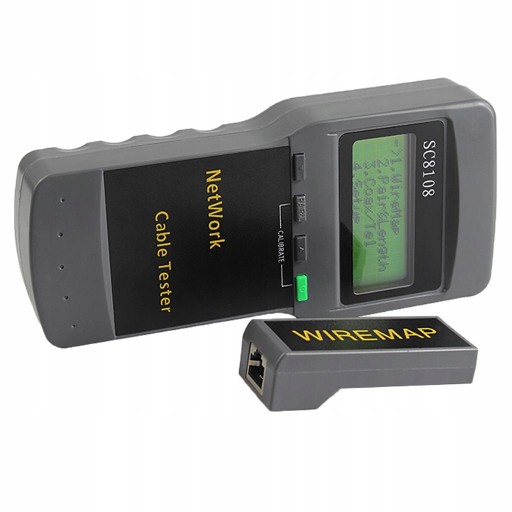

SC8108 Network Wire Tester LAN Length Cable Test Meter Measurement

Description:

Single person can cable connectivity tests

Can detect wiring faults 5E, 6E coaxial cable and telephone lines, including: open, short, jumper, reverse and crosstalk

Wiring / connection error localization

Measure cable length and locate the exact location of OPEN SHORT

The cable length dynamic calibration function, so that the length of the measurement accuracy up to 98%

Easy to use, large-screen display of the test results at a glance

easy to carry, auto delay off

Have remote identifier can plug length measurement

The distal end of the instrument to identify the audio prompt

Specification:

Port: Tester master port (M), tester loopback port (left), remote identifier port (right)

Calibration accuracy: 3% (± 0.5 m or ± 1.5 ft) (calibrating cable> 5 m)

Shipment accuracy: 5% (± 0.5 m or ± 1.5 Yingchi) (AMP, AT & T Class 5 cable)

Length Calibration: User can set self-calibration factor by a given length of cable; cable length calibration of more than 5 meters

Package Includes:

1xNetwork tester
