ASUS Z170-A 1151 IOS МАГАЗИН

ASUS

Z170-A

Z170 s1151 - Przed zakupem prosze sprawdzic kompatybilnosc plyty ze swoim procesorem (tabelka ponizej), albo wyslac do nas zapytanie w tej sprawie

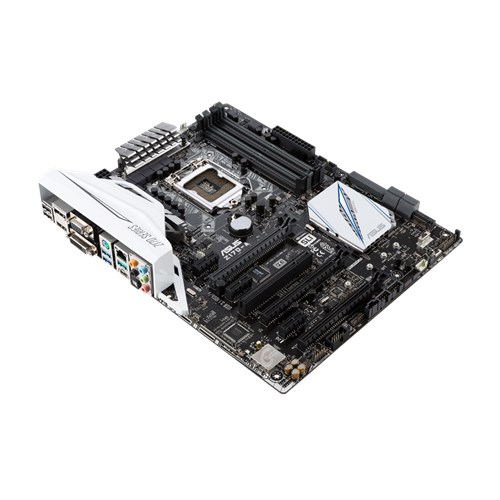

WERSJA OEM - SPRZEDAJEMY SAMA PLYTE JAK NA ZDJECIU+BLASZKA DO OBUDOWY,OPAKOWANIE OEM

na plycie najnowsza wersja BIOSu

12 miesiec y  gwarancji od momentu wysylki

23%

Z170 -A

Poniższa tabela wykazuje kompatybilność Procesorów

• Procesor, Od wersji PCB, Od wersji BIOS, Uwaga
• Celeron G3900(2.8G, 51W, L3:2M, 2C), ALL, 0703GO,
• Celeron G3900T(2.6G, 35W, L3:2M, 2C), ALL, 0703GO,
• Celeron G3920(2.9G, 51W, L3:2M, 2C), ALL, 0703GO,
• Celeron G3930(2.9G,51W,L3:2M,2C,rev.S0), ALL, 3016GO,
• Celeron G3930T(2.7G,35W,L3:2M,2C,rev.S0), ALL, 3016GO,
• Celeron G3950(3.0G,51W,L3:2M,2C,rev.S0), ALL, 3016GO,
• Core i3-6098P (3.6GHz, 2C, HT, L3:3M, 54W, rev.R0), ALL, 1102GO,
• Core i3-6100 (3.7GHz, 2C, HT, L3:3M, 51W, rev.S0), ALL, 0703GO,
• Core i3-6100T (3.2GHz, 2C, HT, L3:3M, 35W, rev.S0), ALL, 0703GO,
• Core i3-6300 (3.8GHz, 2C, HT, L3:4M, 51W, rev.S0), ALL, 0703GO,
• Core i3-6300T (3.3GHz, 2C, HT, L3:4M, 35W, rev.S0), ALL, 0703GO,
• Core i3-6320 (3.9GHz, 2C, HT, L3:4M, 51W, rev.S0), ALL, 0703GO,
• Core i3-7100(3.9G,51W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,
• Core i3-7100T(3.4G,35W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,
• Core i3-7300(4.0G,51W,L3:4M,2C,rev.S0,HT), ALL, 3016GO,
• Core i3-7300T(3.5G,35W,L3:4M,2C,rev.S0,HT), ALL, 3016GO,
• Core i3-7320(4.1G,51W,L3:4M,2C,rev.S0,HT), ALL, 3016GO,
• Core i3-7350K (4.2GHz, 2C, L3:4M, 60W, rev.S0), ALL, 3016GO,
• Core i5-6400 (2.7GHz, 4C, L3:6M, GT2, 65W, rev.R0), ALL, 0229GO,
• Core i5-6400T (2.2GHz, 4C, L3:6M, GT2, 35W, rev.R0), ALL, 0229GO,
• Core i5-6402P (2.8GHz, 4C, L3:6M, 65W, rev.R0), ALL, 1102GO,
• Core i5-6500 (3.2GHz, 4C, L3:6M, GT2, 65W, rev.R0), ALL, 0229GO,
• Core i5-6500T (2.5GHz, 4C, L3:6M, GT2, 35W, rev.R0), ALL, 0229GO,
• Core i5-6600 (3.3GHz, 4C, L3:6M, GT2, 65W, rev.R0), ALL, 0229GO,
• Core i5-6600K (3.5GHz, 4C, L3:6M, GT2, 91W, rev.R0), ALL, 0229GO,
• Core i5-6600T (2.7GHz, 4C, L3:6M, GT2, 35W, rev.R0), ALL, 0229GO,
• Core i5-7400 (3.0GHz, 4C, L3:6M, Intel HD 600 series, 65W, rev.B0), ALL, 3016GO,
• Core i5-7400T (2.4GHz, 4C, L3:6M, Intel HD 600 series, 35W, rev.B0), ALL, 3016GO,
• Core i5-7500 (3.4GHz, 4C, L3:6M, Intel HD 600 series, 65W, rev.B0), ALL, 3016GO,
• Core i5-7500T (2.7GHz, 4C, L3:6M, Intel HD 600 series, 35W, rev.B0), ALL, 3016GO,
• Core i5-7600 (3.5GHz, 4C, L3:6M, Intel HD 600 series, 65W, rev.B0), ALL, 3016GO,
• Core i5-7600K (3.8GHz, 4C, L3:6M, Intel HD 600 series, 91W, rev.B0), ALL, 3016GO,
• Core i5-7600T (2.8GHz, 4C, L3:6M, Intel HD 600 series, 35W, rev.B0), ALL, 3016GO,
• Core i7-6700 (3.4GHz, 4C, HT, L3:8M, GT2, 65W, rev.R0), ALL, 0229GO,
• Core i7-6700K (4.0GHz, 4C, HT, L3:8M, GT2, 91W, rev.R0), ALL, 0229GO,
• Core i7-6700T (2.8GHz, 4C, HT, L3:8M, GT2, 35W, rev.R0), ALL, 0229GO,
• Core i7-7700 (3.6GHz, 4C, HT, L3:8M, Intel HD 600 series, 65W, rev.B0), ALL, 3016GO,
• Core i7-7700K (4.2GHz, 4C, HT, L3:8M,Intel HD 600 series , 91W, rev.B0), ALL, 3016GO,
• Core i7-7700T (2.9GHz, 4C, HT, L3:8M,Intel HD 600 series , 35W, rev.B0), ALL, 3016GO,
• Pentium G4400 (3.3GHz, 2C, L3:3M, 54W, rev.S0), ALL, 0703GO,
• Pentium G4400T (2.9GHz, 2C, L3:3M, 35W, rev.S0), ALL, 0703GO,
• Pentium G4500 (3.5GHz, 2C, L3:3M, 51W, rev.S0), ALL, 0703GO,
• Pentium G4500T (3.0GHz, 2C, L3:3M, 35W, rev.S0), ALL, 0703GO,
• Pentium G4520 (3.6GHz, 2C, L3:3M, 51W, rev.S0), ALL, 0703GO,
• Pentium G4560(3.5G,54W,L3:3M,2C,rev.B0,HT), ALL, 3016GO,
• Pentium G4560T(2.9G,35W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,
• Pentium G4600(3.6G,51W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,
• Pentium G4600T(3.0G,35W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,
• Pentium G4620(3.7G,51W,L3:3M,2C,rev.S0,HT), ALL, 3016GO,

Back IO

Audio

• 5x Analog Audio Jack
• 1x Optical SPDIF Out

Misc

• 1x PS/2

Network

• 1x RJ-45

USB

• 2x USB 2 Type-A
• 2x USB 3 Gen 1 Type-A
• 1x USB 3 Gen 2 Type-A
• 1x USB 3 Gen 2 Type-C

Video

• 1x DVI-D
• 1x DisplayPort
• 1x HDMI Out
• 1x VGA

Internal Connections

Audio

• 1x SPDIF Out Header

Fans

• 7x 4-pin Fan Header
• 1x 5-pin Fan Extension Header

Misc

• 1x TPM Header
• 1x Thunderbolt 5-pin Header

Power

• 1x 24-pin ATX Power
• 1x 8-pin 12V Power

Storage

• 1x SATA Express
• 6x SATA3

USB

• 2x USB 2 Header
• 2x USB 3 Gen 1 Header

Misc. Information

• PCB Color: Other Colors
• Black: BlackSilverWhite

Network

Wired

• Amount: 1x
• Chip: Intel I219-V
• Speed: 1000 Mbit
• For IPMI: No

Expansion Slots

Slots

• 1x PCI-E 3.0 x16 @ x16
• 1x PCI-E 3.0 x16 @ x8
• 1x PCI-E 3.0 x16 @ x4
• 3x PCI-E 3.0 x1 @ x1
• 1x PCI 5V @ 32-bit

Crossfire & SLI

• AMD Crossfire: Nvidia SLI
• Yes: Yes

Audio

• Audiochip: Audio Channels
• Realtek ALC892: 7.1

Memory

This board has 4 slots with the following specifications:

• Slot Protocol: DDR4
• Slot Type: 288-pin DIMM
• Maximum Speed: 3466 MHz
• Maximum Capacity: 64 GB
• Maximum Channels: 2
• ECC support: No

M.2 Slots

M.2 Connections

• Amount: 1x
• Slot: M-Key
• Sizes: 22110, 2242, 2260, 2280,
• Speeds: PCI-E 3.0 x4, SATA3,
