Силовой сильноточный транзистор 13003 TO-92

100 Pieces Electronic Current Transistor Triode 13003 400V 1A 0.8w NPN TO-92

Description:

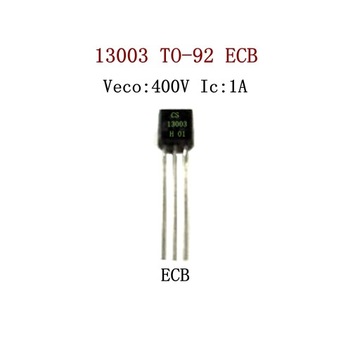

Product name : NPN Transistor; model : 13003; package :TO-92 ECB;

Vceo withstand voltage: 400V; collector current) : 0.8A

Operating junction temperature : 150C; storage temperature : -65 to 150C; pin Size : 14 x 0. 7mm/ 0. 55" x 0. 03" ( L* W)

Suitable for mobile phone charger, small power supply, is a kind of semiconductor device controlled by power switch.

Easy to install, stable features.

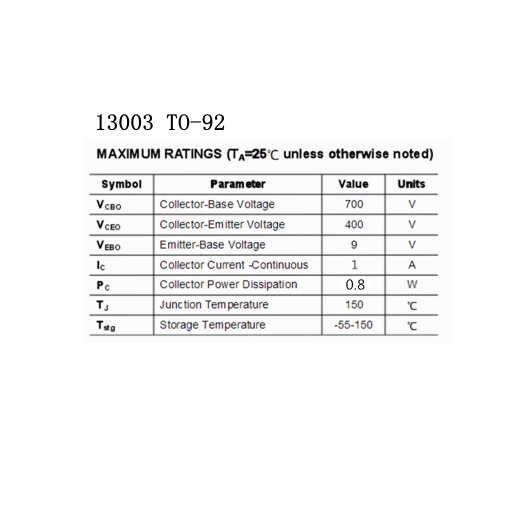

Specification:

Model: 13003

Package: TO-92 ECB

Vceo withstand voltage: 400v

Ic current: 0.8A

Pc power: 0.8w

Hfe zoom in: 15-30

Material: iron, copper, silicon

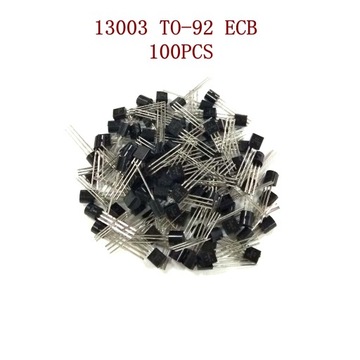

Package Includes:

100 Pieces Transistor
