Адаптер DAC 192 с оптической ручкой

Digital Audio Decoder 192kHz DAC Volume Control Toslink Coaxial Converter

Description:

Build-in high performance RTOS operating system and audio decoder chip.support DTS/AC-3.

Super fast start time about 3 seconds.small size and metal case, Anti-interference.supports volume adjustment.

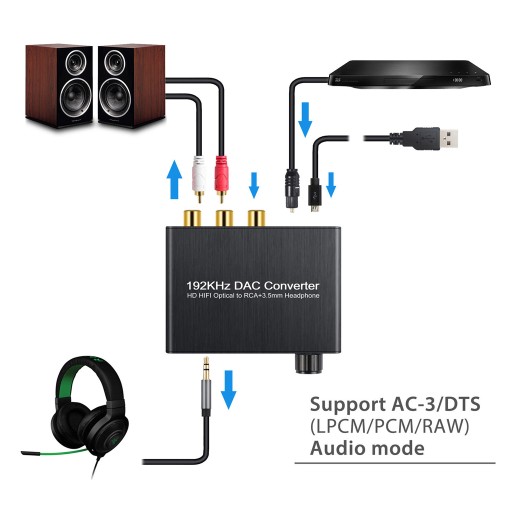

Input:1 SPDIF Optical, 1 Coaxial.output:L-OUT-R. 3.5mm Headphone Port.adopt RCA/3.5mm Headphone port output ,convenient and efficient in use.

Auto switch between optical and coaxial channel input.Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

High compatibility: Support network player, HDTV, Blu-ray DVD, DVD, PS3, XBOX 360, DM500S, DM800HD, etc.

Specification:

This audio decoder can auto convert optical/coaxial channel(Support LPCM/PCM/RAW) input to 2.0 channel analog audio output, and support decoding Dolby AC-3/DTS(include 5.1 RAW digital audio streaming). So it is widely used in families, schools, squares, concert halls, cinemas and other public places to enjoy the shock effect of DTS or Dolby.

Support audio format: MP3,AC3,DTS,WAV,WMA,AAC,ALAC,FLAC,APE,OGG,M4A

Signal Noise Ratio: 120db

Stereo Isolation: 80db（1KHZ）

Channel Unbalance: 0db

Sampling Rate: 32~192 KHz

Bit Rate: 16~24 Bit

Response Frequency: 20Hz~20KHz+/-0.7db

THD: 20Hz~20KHz 0.25-0.065%

THD+N: 1KHz 0.15%

Analog Output level: 2.2V

Shell Dimension: 81.7 x 78 x 21.2mm

Weight: 110g

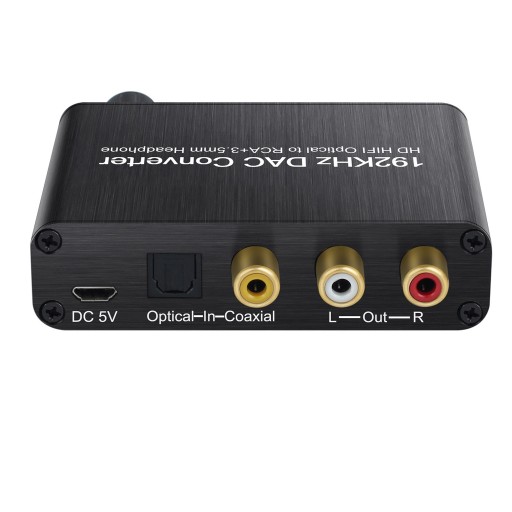

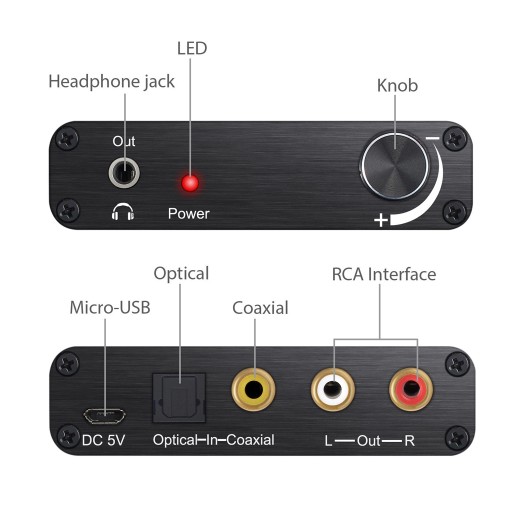

Port: Optical×1,Coaxial×1,earphone jack×1,L/R×1

Working Voltage: DC +5V

Max Power Current: 200mA

Working Temperature: 0-70℃

Working Humidity: 10%-80%RH(non-condensing)

Storage Temperature: -10-80℃

Storage Humidity: 5% -90% RH(non-condensing)

Package Includes:

1 Peice Decoder

1 Peice User Manual

1 Peice Micro USB Power Cable
